( full specifications are in the manual for the device )
1. The odorant vapor utilizer (hereinafter referred to as the multiplicator) pumps odorant vapor from the working
and/or "underground" capacity into the output manifold of the GDS.
2. The multiplier has a pneumatic drive, which is controlled by a controller together with solenoid valves.
3. The principle of operation is based on the selection of gas from the inlet manifold of the GDS and the subsequent discharge
of this part of the gas into the outlet manifold together with odorant vapors. This eliminates the leakage of odorant vapor into the
atmosphere and makes this system environmentally friendly!
4. Operation of the multiplier is allowed at ambient temperature from minus 30 to plus 50 °С.
Note: The use of the "Multiplier" eliminates the leakage of odorant vapors into the atmosphere and makes technical environmentally safe system (including gas odorization complex)!
1. The dose volume of the pump is 200 cm3.
2. The required pressure difference between the inlet and outlet of the GDS is at least 0.3 MPa.
3. Seal material - fluoroplast.
1. Package includes:
- cartoonist
- control valves
- control controller
- technological cabinet
2. The multiplier can be supplied as part of the FLOUTEC-TM-D gas odorization complex.
3. The company provides warranty service for the multiplier within 24 months and after-sales service during the entire
service life.

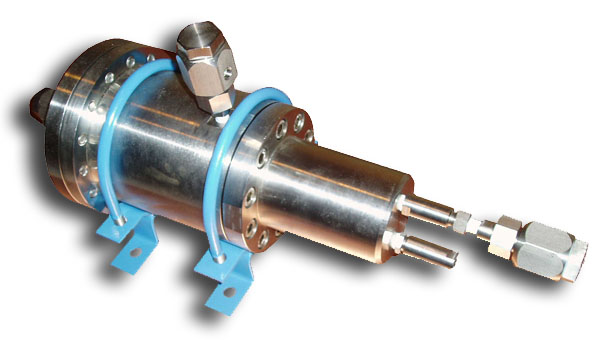

Pneumatic pump "Multiplicator".
