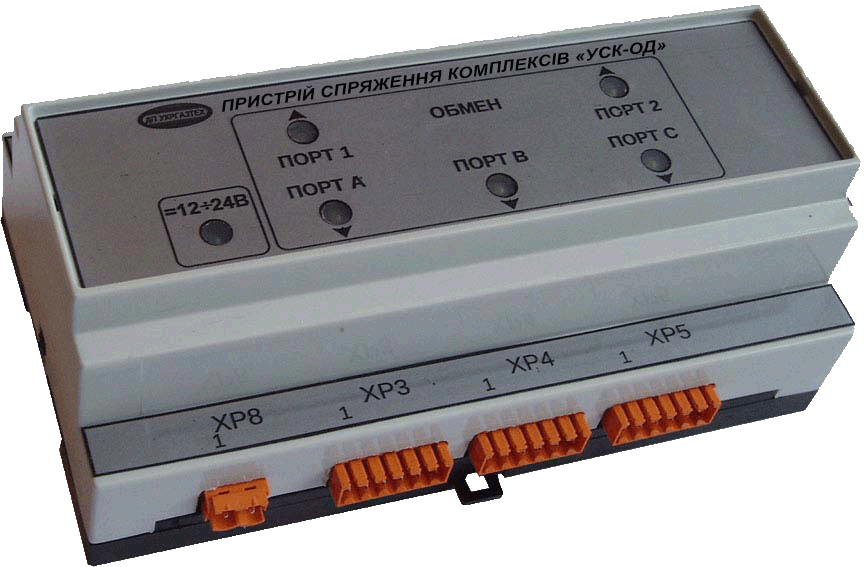

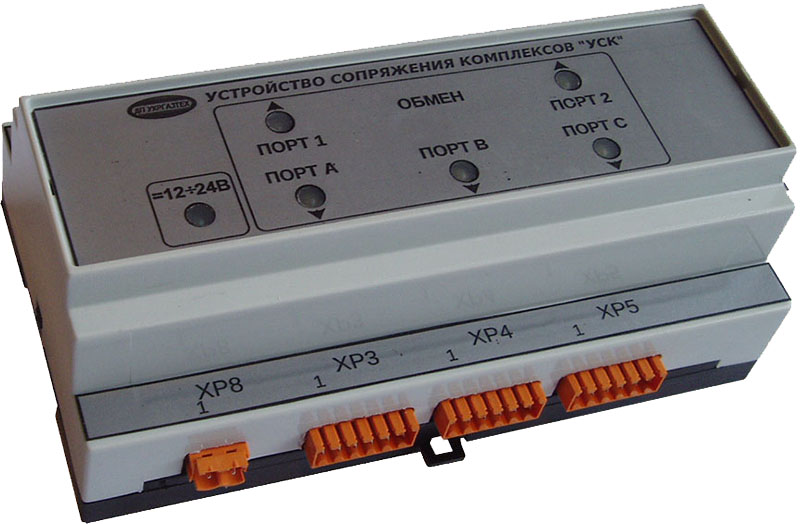

1. The PSK-OD complex interface device (USK-OD) is designed for
ensuring the exchange of information with measuring complexes for commercial accounting of gas consumption (FLOUTEC-TM type),
odorization complexes FLOUTEC-TM-D gas, ACS GRS, gas heaters, as well as the issuance of information about the current gas
consumption in the form of pulses.
2. The PSK-OD complex interface device (USK-OD) is not a measuring instrument.
3. The device PSK-OD (USK-OD) is intended for operation in rooms outside explosive zones at a temperature
ambient air from minus 40 to plus 60 °C.
1. The number of formed information access channels . . . - 1
2. Number of directly connected measuring complexes addressed via access channels to the device . . . - 254
3. The speed of digital information exchange over the access channel - from 1200 to 57600 bps
4. Type of serial communication interface used - RS232
5. Number of pulse outputs . . . - 2
• isolated pulse output parameters:
- switched current. . . - no more than 1 A
- voltage . . . . . . . . . . - no more than 30 V
• parameters of pulse output of open collector type:
- switched current - no more than 100 mA
- voltage . . . . . . . . . . - no more than 33 V
6. The device is powered by
external DC source with output voltage from 8 to 24 V (nominal - 12 V)
7. Own current consumption:
- in standby mode - no more than 25 mA
- in the mode of information exchange . . . - no more than 75 mA
8. Power consumption at rated supply voltage . . . – no more than 1.5 W
9. Overall and connecting dimensions do not exceed - 157 x 95 x 58 mm
10. Weight PSK-OD (USK-OD) . . . . . - no more than 0.4 kg
11. Device lifespan . . . . . - at least 12 years old
12. The company provides warranty service for PSK-OD (USK-OD) within 24 months and after-sales service
during the entire period services.
1. The interface device of PSK-OD (USK-OD) complexes is made in plastic
housing with brackets for mounting on a DIN rail.
2. The PSK-OD (USK-OD) complex interface device has a built-in self-restoring polymer fuse of the "Polyswitch" type for 120 mA.
3. Changing the settings of access channels (priority, addressing, exchange rate) is carried out using a special
device configuration applications.
4. Connectors for external connections - type "Combicon".
