Features of Pressure Transducers PD-1 & Temperature Transducers PT-1
( general features of converters ) On the market
Manufacturers of pressure sensors can be conditionally divided into "Intelligent" and "Consumer" sensors. Smart sensors,
are typically available with digital and/or analog output signals of high near-precision accuracy and stability of pressure
measurement, independent of the temperature of the surrounding air (medium).
Naturally, smart sensors are also more expensive.
The cost of a new pressure sensor PD-1 manufactured by "DP UkrGasTech" LTD has now become comparable to the price of
analog sensors class consumer goods however, the
specifications of these sensors match intelligent. The PD-1 sensor has both a digital and an analog output signal of 4 - 20 mA, the parameters of which are practically
do not depend on the ambient air (medium) temperature.
Based on the foregoing, LLC "DP UkrGasTech" recommends the use of sensors with a digital output signal, but subject to the request
market, we produce a high-precision sensor with an analog output signal (at the request of the customer).
Detailed information about pressure sensors PD-1 can be obtained on this page of our website.
( full specifications are in the manual for the device )

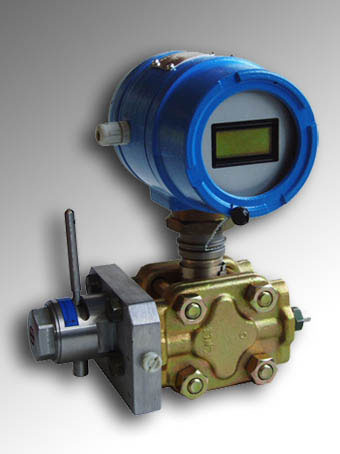

1. Measuring pressure transducers (sensors) PD-1
(hereinafter referred to as converters) are a means of measuring technology and are intended for conversion into electrical
digital (code) signal of absolute, gauge or differential pressure of liquids and/or non-aggressive gases to the material
chambers of the measuring unit.
2. PD-1 pressure transducers belong to the group of intelligent microprocessor field devices
explosion-proof and vibration-resistant design, designed for information communication with other products.
3. Pressure transducers PD-1 comply with the Technical Regulations approved by the Decree of the Cabinet of Ministers
of December 28, 2016. No. 1055, have explosion protection marking
II 2G Ex ib IIB T3 Gb and can be used in explosive areas of open industrial sites and premises,where the formation
of explosive mixtures of categories IIA and IIB is possible.
4. Operation of pressure transducers PD-1 is allowed at an ambient temperature of minus 40 up to plus 70 °С.
5. Temperature measuring transducers PT-1 are a means of measuring technology and are
intended for converting the temperature of gases, liquids and bulk substances, non-aggressive to the material of the protective
fittings of the converter into electrical digital ones code signals.
6. Converters can be used to control and regulate technological processes in various industries, for use as part of measuring
systems and complexes, incl. as part of flow meters for commercial accounting of gases or liquids.
7. Temperature transmitters PT-1 comply with the Technical Regulations for legally regulated measuring instruments
approved by the Decree of the Cabinet of Ministers
of December 28, 2016.
8. Temperature transducers PT-1 comply with the Technical Regulations approved by the Decree of the Cabinet of Ministers
of December 28, 2016 No. 1055 and have explosion protection marking
II 2G Ex ib IIB T3 Gb and can be used in explosive areas of open industrial sites and premises,
where the formation of explosive mixtures of categories IIA and IIB is possible.
9. Operation of PT-1 temperature transducers is allowed at ambient air temperature from minus 40
to plus 70 °С.
